A new series of products optimized and designed using technology from TECO Westinghouse Electric Company in the United States. Adopting a new process, it has the advantages of simplified equipment, reliable operation, investment savings, and reduced energy consumption. It is safe and reliable to operate, and easy to install and maintain. Suitable for driving various general machinery such as ventilators, compressors, water pumps, coal mills, steel mills, and winches.

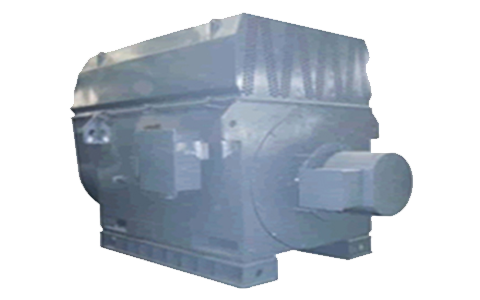

TECO Slip Ring Induction High-Voltage Motors RATING:
ITEM：STANDARD SPECIFICATION
MODEL：AEZT/AECT/AECU
Kind of Motors：SLIP-RING INDUCTION MOTOR (SRIM)
Design Standards：IEC, BS, JEC
Voltage：3300V/6600V
Frequency：60Hz
Output Range：355 ~ 4500kW (475 ~ 6000HP)
R.P.M. (Syn.)：1800 ~ 900R.P.M. (4 ~ 8 Pole)
Time Duty：Continuous, S1, MCR, S.F.1.0
Protection Enclosure：Totally Enclosed (IP44), Slip Ring WPI
Cooling Method：External and Internal Fans, With Air To Air Heat Exchanger Which Is An Independent Unit Mounted Directly On The Motor (IC 611)
Mounting：Horizontal Foot Mounting (IM 1001)
Frame No：400D ~ 710E
TECO Slip Ring Induction High-Voltage Motors APPLICATION：
Power Condition：Voltage Variations ±5% From The Rated Voltage
Environment Conditions：
Place: Shadow, Non-Hazardous
Ambient Temperature: -20 ~ 40℃
Relative Humidity: Less than 95% RH (Non-Condensation)
Altitude: Less than 1000 Meters
Drive Method：Direct Coupling
Direction of Rotation：Bi-Directional
Method of Starting：Full Voltage Across-The-Line With External Secondary Resistor
